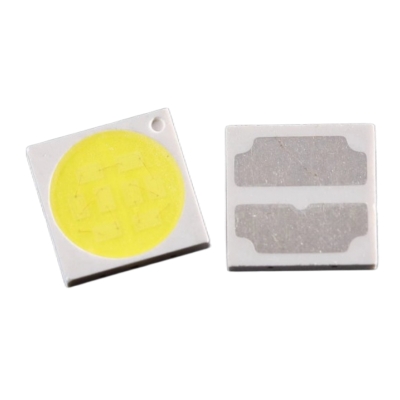

EMC7070 Round Cup

Features:

· Cut and package with EMC, high reliability;

· high and low voltage optional, to meet the use requirements;

· full color temperature coverage;

· Can effectively save customer power costs;

· Different power version, single 835-1600 lumen light output; Applications:

spotlights (bloom flux spotlights, PAR lamps, etc.) , bloom flux bulbs, traditional halogen lamp lighting replacements, spot lights, miner's lamps, architectural landscape lighting, general lighting.

Sample Request

Package	Product Type	CCT (K)	CRI (min.)	Φ (lm)	Efficacy (lm/w)	Vf (V)	If (mA)	IF-Max (mA)	IFP-Max (mA)	Power (w)	Tj (℃)	Viewing Angle (°)
	E7070Y-W30YP1P2FM7N3-XXXX-QG	3000	80	1000-1072-1150	152.4	35.2	200	300	350	7.0	125	120
	E7070Y-W50YP2P3FM7N3-XXXX-QG	5000	80	1100-1153-1250	163.8
	E7070Y-W30YP2P3FM7N3-XXXX-QG	3000	80	1050-1110-1200	158.2	35.1	200	300	350	7.0	125	120
	E7070Y-W50YP3P4FM7N3-XXXX-QG	5000	80	1100-1193-1250	170.1
	E7070Y-W30YP4P5FM7N3-XXXX-QG	3000	80	1450-1538-1600	139.4	36.8	300	300	350	11.0	125	120
	E7070Y-W50YP5P6FM7N3-XXXX-QG	5000	80	1600-1654-1750	149.9
	E7070Y-W30YP5P6FM7N3-XXXX-QG	3000	80	1550-1595-1700	144.9	36.7	300	300	350	11.0	125	120
	E7070Y-W50YP6P7FM7N3-XXXX-QG	5000	80	1650-1716-1800	155.9
	E7070Y-W30YP5P6FP7Q0-XXXX-QG	3000	80	1350-1466-1500	133.6	54.9	200	240	300	11.0	125	120
	E7070Y-W50YP6P7FP7Q0-XXXX-QG	5000	80	1500-1577-1650	143.7
	E7070Y-W30YP6P7FP7Q0-XXXX-QG	3000	80	1500-1547-1650	141.2	54.8	200	240	300	11.0	125	120
	E7070Y-W50YP7P8FP7Q0-XXXX-QG	5000	80	1600-1664-1750	151.9
