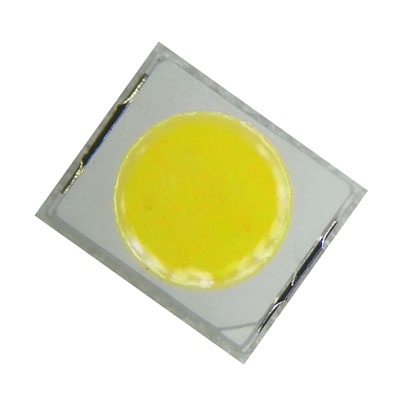

2835 Round Cup

2835 Round Cup

Product Features
● ANSI standard;
● Uniform light color;
● It is especially suitable for use with lens, no light spot, uniform light color;
● It has good heat dissipation, high temperature resistance, low light decay, long life and high reliability;
● Comply with LM-80, RoHS, CE and other certifications.
Applications
Light bar, backlight module, billboard, panel light, light box, etc.
Sample Request
2835 Round Cup 1W 9V
Part Number Power (W) Luminous
Flux(lm)
VF (V)  If (mA) Ra CCT (K) Specification
P2835Y-W27SJ0K2FE8F2-XXXX  1 90-150 8.8-9.8 100 80 2700
P2835Y-W29SJ0K2FE8F2-XXXX 90-150 8.8-9.8 100 80 3000
P2835Y-W34SJ0K3FE8F2-XXXX  90-160 8.8-9.8 100 80 3500
P2835Y-W41SJ0K3FE8F2-XXXX  90-160 8.8-9.8 100 80 4000
P2835Y-W50SJ0K3FE8F2-XXXX  90-160 8.8-9.8 100 80 5000
P2835Y-W64SJ0K3FE8F2-XXXX  90-160 8.8-9.8 100 80 6500
2835 Round Cup 1W 6V
Part Number Power (W) Luminous
Flux(lm)
VF (V)  If (mA) Ra CCT (K) Specification
P2835Y-W27SJ0K2FD3D6-XXXX 1 90-150 5.8-6.6 150 80 2700
P2835Y-W29SJ0K2FD3D6-XXXX 90-150 5.8-6.6 150 80 3000
P2835Y-W34SJ0K3FD3D6-XXXX 90-160 5.8-6.6 150 80 3500
P2835Y-W41SJ0K3FD3D6-XXXX 90-160 5.8-6.6 150 80 4000
P2835Y-W50SJ0K3FD3D6-XXXX 90-160 5.8-6.6 150 80 5000
P2835Y-W64SJ0K3FD3D6-XXXX 90-160 5.8-6.6 150 80 6500
