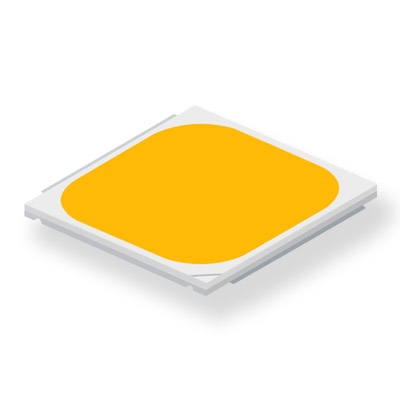

EMC7070

EMC7070

Product Features
● Using EMC resin, the product has high reliability;
● High brightness, the typical value of brightness is up to 640lm@Ra80;
● High efficacy, efficacy higher than 170lm/W@Ra80.
Applications
Suitable for street light, spotlight, high bay, flood light, landscape lighting, etc.


Sample Request
Part Number Power (W) Luminous
Flux(lm)
VF (V)  If (mA) Ra CCT (K) Specification
E70701-W29GN2N5EM5M6-LX00 3.6 500-700 31-33 115 75 3000
E70701-W41GN3N6EM5M6-LX00 3.6 550-750 31-33 115 75 4000
E70701-W52GN3N6EM5M7-LX00 3.6 550-750 31-33 115 75 5200
E70701-W58GN3N6EM5M6-LC00 3.6 550-750 31-33 115 75 5800
