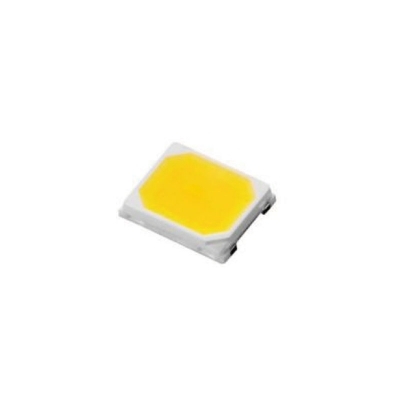

PCT2016

Product Features
● High brightness and high efficacy;
● Small size: 2.00*1.60*0.55mm;
● Viewing angle 120°;
● RoHS compliant & Pb free.
Applications
Mobile front soft flash, back flash, cashier terminal scanner, POS machine, etc.

Sample Request

Part Number	DC Forward Current	Peak Pulse Current（350ms ON,650ms OFF)	IF (mA)	VF (V)	Luminous Flux（lm）	CCT (K)	Ra	Specification
P2016F-W57WE1F2FD0D3-LX01	200	350	150	2.8-3.6	45-75	5000-6000	80
