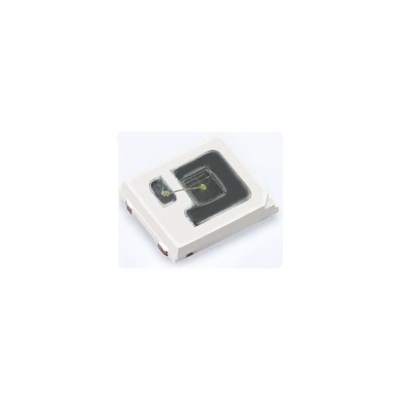

2016 IR

Product Features
● Infrared lightsource with high efficacy;
● High reliability, low thermal resistance;
● Peak Emission Wavelength940nm;
● Viewing angle 120°;
● RoHS compliant;
● Pb-free reflow soldering.
Applications
● Machine vision systems;
● Infrared cameras;
● Surveillance systems;
● CCB Cameras;
● Wireless communication;
● Mobile phone infrared remote control device emission source.

Sample Request

Part Number	IF (mA)	VF (V)	Radiated Flux(mW )	Peak Emission Wavelength(nm )	Viewing Angle(°)	Specification
P2016F-I940J3K1AAFA1-0000	250	1.4-1.7	110-140	930-950	120
P2016F-I850L0L2AAFA1-0000	250	1.4-1.7	200-260	840-860	120
