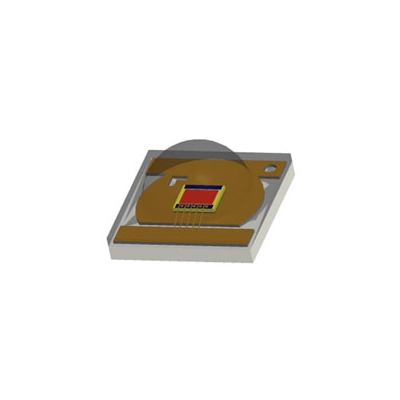

VCSEL Floodlight -3535

VCSEL Floodlight -3535

Product Features
● 850nm,940nm VCSEL&LED;
● High light power and photoelectric conversion efficiency;
● Low thermal resistance, high reliability;
● Can be reflowed directly.
Applications
● 3D vision
● Security monitoring
● Laser lighting
● Close perception
● Gesture recognition
● Infrared flash
● Smart life
Sample Request
Part Number Peak Emission
Wavelength(nm )
Power
(W)
Beam angle
°
Size
mm)
RTFS2020YA001 940 1 20-24 3.45*3.45*1.93
RTFS2020YA002 940 2 20-24 3.45*3.45*1.93
RTFS2020YB001 850 1 20-24 3.45*3.45*1.93
RTFS2020YB002 850 2 20-24 3.45*3.45*1.93
RTFS2020YA003 940 1 20-24 3.45*3.45*0.89
RTFS2020YA004 940 2 20-24 3.45*3.45*0.89
RTFS2020YB003 850 1 20-24 3.45*3.45*0.89
RTFS2020YB004 850 2 20-24 3.45*3.45*0.89
