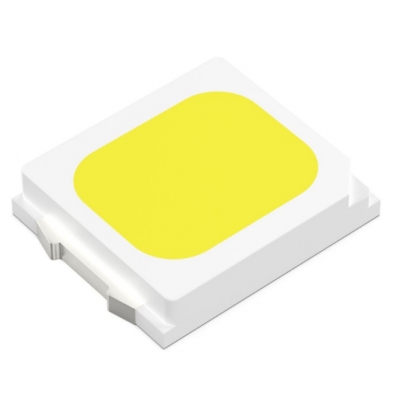

2835灯带白光产品规格

产品特性

·符合ERP和ANSI标准；
·全色温范围覆盖;
·发光面大，光色均匀；
·满足散热好，耐高温，低光衰，高寿命、高功率，高可靠性的应用。
·符合LM-80、RoHS等认证。
产品应用
·球泡灯，灯管，面板灯等。

样品申请

Package	Product Type	CCT (K)	CRI (min.)	Φ (lm)@4000K	Efficacy (lm/w)	Vf (V)	If (mA)	IF-Max (mA)	IFP-Max (mA)	Power (w)	Tj (℃)	Viewing Angle (°)
Thickness： 0.75mm	T28351-W41SC3C3FBB58-AH00	2200-6500	80	23-25	129.6	3.0-3.4	60	75	90	0.20	105	120
	T28351-W41SC2C2FBB58-AH00	2200-6500	80	24-26	134.9	3.0-3.4	60	75	90	0.20	105	120
	T28351-W41SD0D0FB3B5-AH00	2200-6500	80	26-28	155.2	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SD0D0FB3B5-AH00	2200-6500	80	27-29	160.9	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SD1D1FB3B5-AH00	2200-6500	80	28-30	166.1	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SD3D3FB3B5-AH00	2200-6500	80	29-31	172.4	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SD2D2FB3B5-AH00	2200-6500	80	30-32	181.3	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SD4D4FB3B5-AH00	2200-6500	80	31-33	187.1	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SE0E0FB3B5-AH00	2200-6500	80	32-34	191.8	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SE5E5FE9F1-AH00	2200-6500	80	35-40	138.0	9.0-9.6	30	30	40	0.30	105	120
	T28351-W41SG0G0FJ2J3-AH00	2200-6500	80	65-70	121.5	18-19	30	30	40	0.50	105	120
Thickness： 1.1mm	T28351-W41SC1C1FBB58-BD00	2200-6500	80	22-24	123.3	3.0-3.4	60	75	90	0.20	105	120
	T28351-W41SC3C3FBB58-BD00	2200-6500	80	23-25	127.0	3.0-3.4	60	75	90	0.20	105	120
	T28351-W41SC4C4FB3B5-BD00	2200-6500	80	25-27	148.9	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SD0D0FB3B5-BD00	2200-6500	80	26-28	155.2	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SC5C5FB3B-BD00	2200-6500	80	27-29	159.8	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SD1D1FB3B5-BD00	2200-6500	80	28-30	164.9	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SD3D3FB3B5-BD00	2200-6500	80	29-31	174.3	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SD2D2FB3B5-BD00	2200-6500	80	30-32	180.1	2.8-3.1	60	75	90	0.20	105	120
	T28351-W41SE5E5FE9F1-BD00	2200-6500	80	35-40	134.1	9.0-9.6	30	75	90	0.30	105	120
	T28351-W41SG0G0FJ2J3-BD00	2200-6500	80	65-70	118.5	18-19	30	75	90	0.50	105	120
